Tersus: Re: Tabbed Pane

Re: Tabbed PaneDate: Jul 9, 2008Switching between tabs does require some additional modeling. The last error you quote suggests that Focus would have worked, had you first modeled a tab switch, which requires the following:

Drag Data Types/Anything into the Tabbed Pane element and name it <Selected Pane>

In your move focus action, flow from a a reference to the tab you wish to move to into a reference of the <Selected Pane> element (this will cause the new tab to be selected), and only then send focus there.

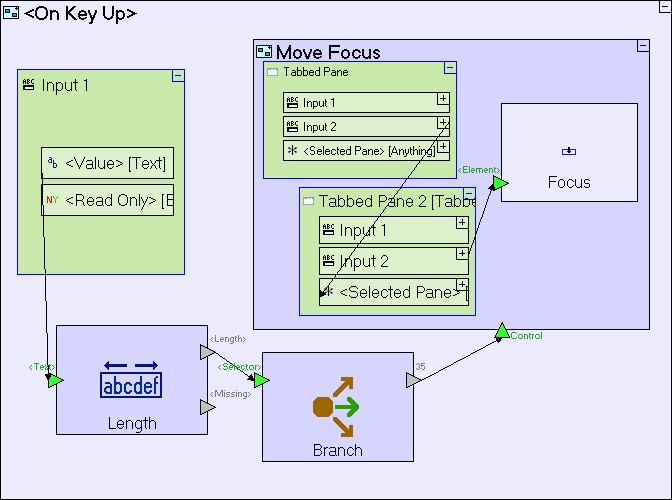

A screenshot would probably make things clearer, so here is the <On Key Up> process I tested:

I hope this information helps you to resolve your problem. If not, please attach an exported project or a screenshot.Regards,David See Also:
