Tersus: Example: Generating and printing a form with a barcode

Example: Generating and printing a form with a barcodeDate: Aug 14, 2013Tags:PrintingDownload:

Barcode.zip (requires version 1.3.21 or later)

DescriptionThis example shows a simple form that contains a dynamically generated barcode image, and a button that sends the form's content to the user's printer.The example demonstrates the following:

Using Callable Service and Generate Barcode to dynamically generate a barcode image.

Using Display/Image to display the dyamically generate image on screen

Using a generic Print action to send an arbitrary display element to the printer [note that this is an old example, and since version 1.4.5, there is a built-in template Display Actions/Print for printing the content of display elements].

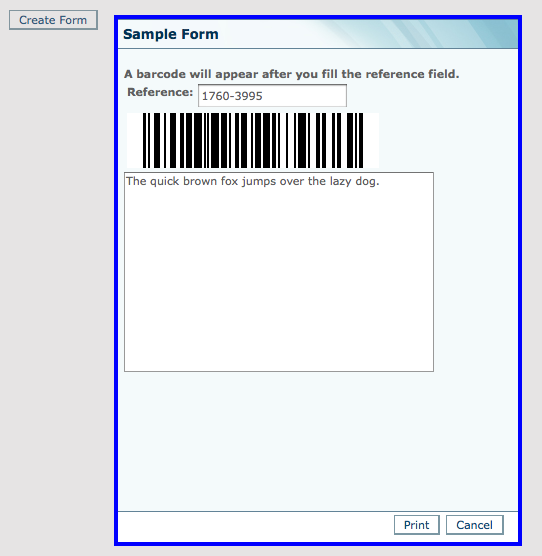

ScreenshotsThe application - a barcode image in a form Barcode Example - A form with a barcode image

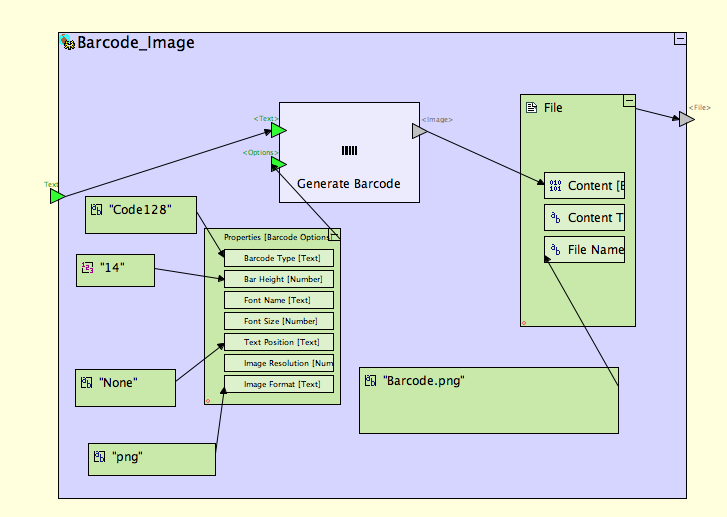

Callable service - generating a barcode image Callable service for generating barcode images

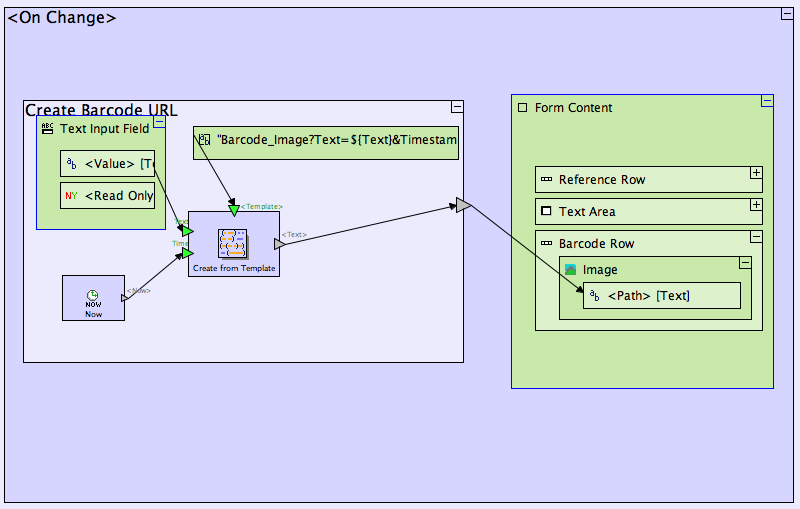

Displaying the dynamically generated barcode image Displaying barcode image

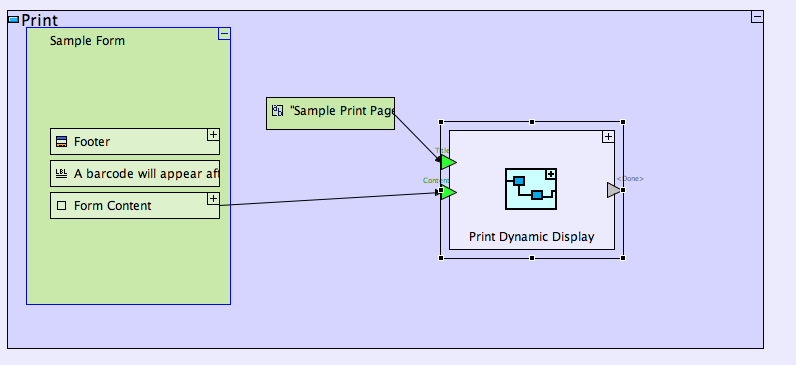

Printing the form using a generic "Print Dynamic Display" action
