The problem is that you're trying to display multiple (repetitive) data values using a non-repetitive display element. Your Dados pop-in contains a single, non-repetitive Text Display which can only display a single value at any given time. Your Action outputs multiple values, causing Action 2 to execute multiple times (because it's repetitive). Each time Action 2 executes it overwrites the previous value displayed in Dados/Text Display, the end result being that the last value returned from the query is actually displayed.
The correct implementation should include a repetitive display, where each value is added following, rather than overwriting, the previous value. One possible implementation uses a table to display the multiple values returned.

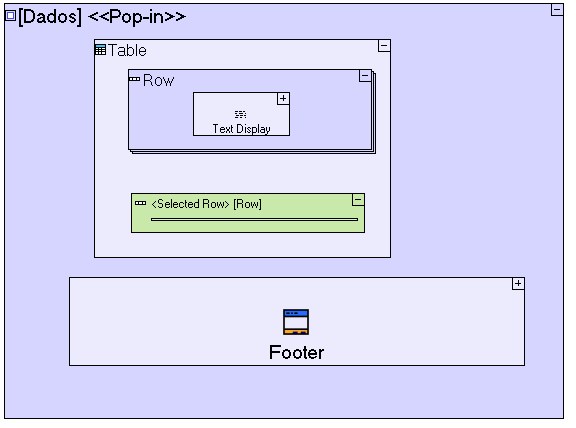

So Dados could look as follows:

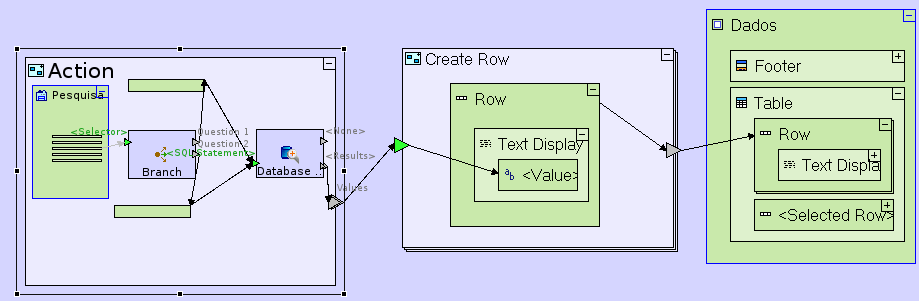

And the process used to populate it should change to:
Since the Rows in the table are repetitive, the Create Row is also repetitive, so for each value output from Action, a Row is created and sent to the Table which displays it following the previous row.
I hope this makes the repetitive notion somewhat clearer.
Regards,
David
