Tersus: Header

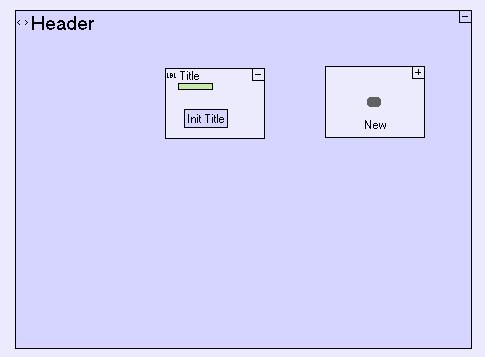

HeaderDate: Apr 25, 2012Header is a default element in Page, modeling the header bar at the top of the page.You can freely model the content of Header, but would typically include a left button, a short title and a right button.By default, Header includes the title and the right button:

Title is a Label element. It contains a default Init Title action, which sets the label's caption (the title displayed on screen) to the name of the model element containing the header. For example, if Header is an element of a Page element named Visitors, then the label's caption is set to "Visitors". You can change Init Title to fit your needs or delete it altogether.

Button is a Button element. Rename it to the required button's name.

To add a left buton, select Button from the Mobile section of the palette and then click inside Header to the left of Title.

Sample modeling: Gusetbook:

Which results:

For a different look and feel, see iPhone Style.See Also:
