Tersus: Stage 4 - Also display raw data (actual and budget amounts)

Stage 4 - Also display raw data (actual and budget amounts)Date: Jan 31, 2021Create Item (step 3 of 3) - Displaying Actual and Budget AmountsIf you now click any of the items in the list, the percentage of this item will disappear. This is because the display switches to the 2nd display option, which we haven't created yet.Let's create now the 2nd option.

Extend the item display:

Zoom to Content/List/Content Item/Dual Display/Option 2.
Add a Grid element (from the Display section of the palette).
Add to Gridtwo rows:
- Add a Row element (from the Display section of the palette) and name it Actual Row.
- Add to Actual Row a Label named Actual: and a Number Display Field named Actual (both from the Display section of the palette).
- Similarly, add a Budget Row with a label Budget: and a number display field Budget.

Display the amounts:

Return to <Mobile View>/Init/Create Item.
Create a flow from Data Record/ACTUAL_SALES to Content Item/Dual Display/Option 2/Actual Row/Actual/<Value>.
Similarly, create a flow from Data Record/BUDGET to Content Item/Dual Display/Option 2/Budget Row/Budget/<Value>.

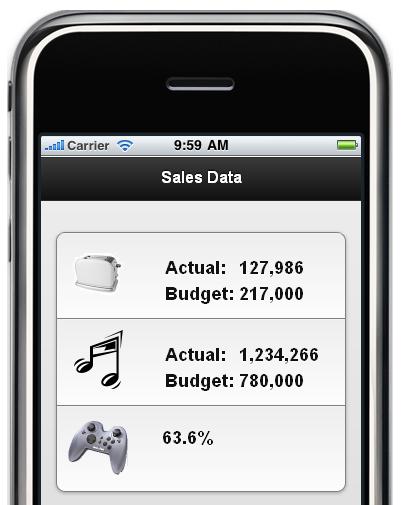

Save your changes and return to the browser. The application will automatically reload. If you now click any of the items in the list, the percentage of this item will disappear, and instead the actual and budget amounts for the segment will be displayed. A second click toggles back to the percentage display.

Stage 4 Videostill not available (but you can see a video of the corresponding stage using version 2.0.4 or earlier).Download Model: Stage 4 See Also:
