Tersus: Header

HeaderDate: Dec 24, 2016Header is a default element in Page, modeling the header bar at the top of the mobile page.You can freely model the content of Header, but would typically include a left button, a short title and a right button.By default, Header includes the title and the right button:

Title is a Label element. Header contains a default <Init> action, which sets the label's caption (the title displayed on screen) to the name of the model element containing the header. For example, if Header is an element of a Page element named Visitors, then the label's caption is set to "Visitors". You can change <Init> to fit your needs or delete it altogether.

Button is a Button element. Rename it to the required button's name.

To add a left buton, select Button from the Display section of the palette and then click inside Header to the left of Title. Alternatively, select Add Element, select Prev, and rename it to the required button's name.

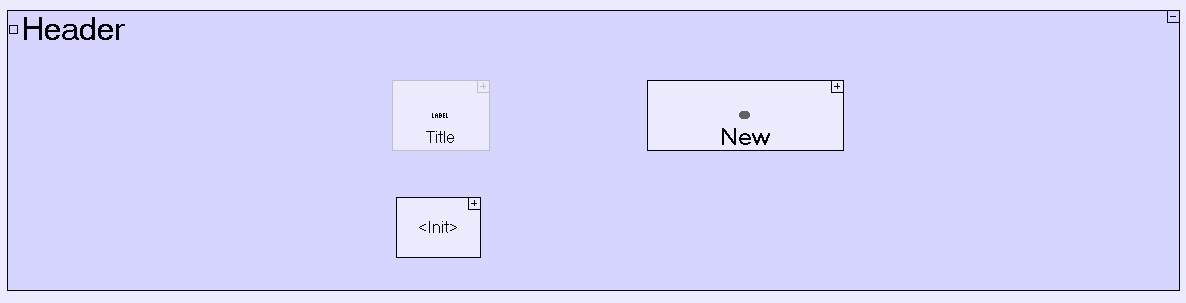

Sample modeling: Gusetbook:

Which results:
